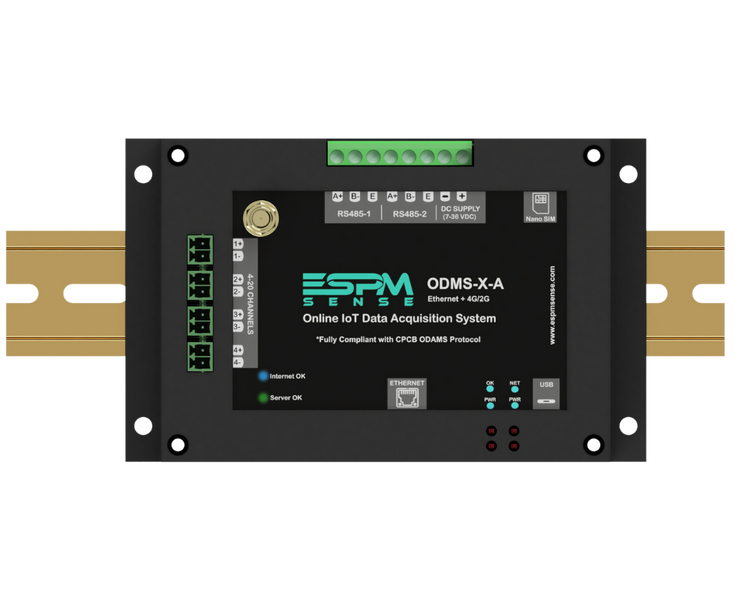

ODMS-X-A

ONLINE IOT DATA ACQUISITION SYSTEM

Ethernet + 4G/2G Version + 4-20 mA Channels
Designed according to OCEMS REST API for the CPCB ODAMS Portal, the ODMS-X provides reliable data logging facility from RS485 Modbus. It has advanced features of AES and RSA encryption, HTTPS for secure transmission of delicate data. It can connect to internet via ethernet or via 4G/2G using nano SIM Card & having additional 4 channles of 4-20 mA

Get Quotedownload brochure
odms-x-a

Technical Specifications

POWER

7-36 VDC

Logging interval

According to ODAMS Protocol Requirement, i.e., every 15 minutes in normal mode and every 30 seconds in calibration mode

Interface

2* RS485 (A+, B-, Earthing) Port

1* Ethernet Port

4 Nos. 4-20 mA channels

tEMPERATURE

0 to 60°C

SIZE

135(L) x 85(W) x 40(H)mm

MOUNTING

DIN Rail
